工业洗衣机

隔离式洗衣机 Isolated

发布时间:2020-02-28点击量:411

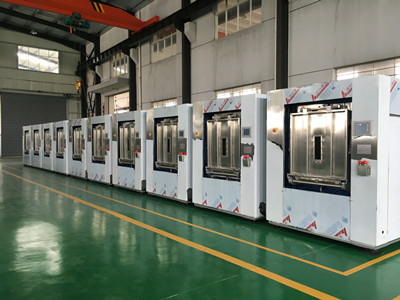

隔离式洗衣机 Isolated


医院用隔离式洗衣机特点

卫生式隔离洗衣机是迎对医院洗衣房特殊洗涤需求而研发的一款新型洗涤设备

无尘服洗衣机,水洗机,烘干机适用于卫生防疫,药厂,医院,无线电子,航空航天,传染病房,无菌车间等行业。

1、电脑控制,全自动/手动可选,洗涤容量大,洗净率高,外形美观。

2、双侧控制,避免洗涤物再污染。
3、结构先进,柔性避震,噪音、震动小。
4、变频调速,操作简便,节能省电。
5、适用范围广,增加了卫生隔离,满足对环境有严格要求的场合,

 GLQX型系列卫生隔离式洗衣机是本公司研制并投放市场的卫生型洗涤机械系列产品。该机和隔离墙可将洗衣房分隔成“洁净区”和“非洁净区”两个操作区域。洗涤物由位于“非洁净区”侧机门装入机内,洗涤完成后从“洁净区”侧机门取出,这样可以防止细菌和尘埃颗粒从“非洁净区”流向“洁净区”,避免了洁净洗涤物的再污染,是医院、公共卫生中心、微电子、半导体和光电企业、生物、制药、化妆品、食品工厂,以及核电站等对洗衣房环境有严格的无菌、无尘、防静电、防辐射要求的场合。

      XTQ-GL系列卫生隔离式洗衣机具有洗涤、脱水的全自动功能,结构合理、操作简便,是提供卫生安全服务、提升洗涤企业品味和竞争能力的最佳选择。

 二、主要特点

      1、本设备采用了筒胆式洗衣缸和利用了水流的均匀分布,达到衣物平衡的目的,结合特殊的避震,使整机的震动消失在避震装置上(简称内吸震),保护了设备与周围环境,方便了用户。

      2、采用洗衣机触摸屏式电脑控制器和进口变频器,具有自动化程度高、安全、稳固可靠,实现初洗、洗涤、消毒、过清、漂白、脱水等全过程的自动化。

      3、本设备设有自动与手动两种控制方式,手动控制可通过操作按钮任意选择洗涤周期、过清次数、脱水时间及水位控制等。

      4、本机外缸采用了双开门,使用户装料和出料分隔于两个区间,保证了卫生隔离的要求。

      5、本设备各控制阀均采用气动控制,动作迅速可靠,对周围环境无污染,亦便于维护。

      6、本设备具有大直径加水和加蒸汽的装置,方便用户自行选择余地。

      7、本设备洗衣缸、外筒与外蒙板均采用优质不锈钢结构,表面光滑、强度高、耐腐蚀,美观耐用。

      8、电气控制箱与整机连在一起,安装方便,体积小,减少占地面积,便于运输和安装。

      9、本设备为箱底框架结构,无漏水、无污染环境现象,可保持场地清洁。

      10、本设备采用进口名牌交流电机变频器进行调速,因而仅用一级三角胶带传动,简化了结构,减少了功率损失,其传动稳定可靠,噪音小,换速时过度均匀,机械故障低,维修方便,功能更完善。

三、      型号及技术参数 Model and technical parameters





GLQX-30

GLQX-50

GLQX-70

 GLQX-100

额定容量(㎏/车)



      30

      50

       70

    85100

洗衣缸容积

  L

      301

      506

       705

      1000

电机功率

  KW

      4

      5.5

       7.5

      7.5

洗衣时转速

r/min

      40

      40

       40

       30

均布时转速

r/min

      67

      60

       60

       60

中速脱水转速

r/min

      375

     340

       340

      340

高速脱水转速

r/min

      700

     680

       650

      650

蒸汽管通径及接头

r/min

   20G3/4”

   20G3/4”

    20G3/4”

  20(G3/4”)

冷、热水管通径及接头

  mm

  40G1″

  40G1″

    40G1″

   40G1″

压缩空气气管通径

  mm

      8

      8

        8

       8

压缩空气气压

  MPa

   0.50.6

  0.50.6

    0.50.6

   0.50.6

每车耗水量()



     1000

    1200

      1250

     1800

每车耗气量(约)



     20

     30

       45

      50

每车耗电量(约)

 KWh

     1.5

     2.1

       2.8

      3.2

压缩空气流量

m/min

     0.36

    0.36

       0.36

      0.36

用户线四芯铜芯(地缆线)

  mm

      6

     6

        6

       10

外形尺寸(长**高)

  mm

1420*1350*1800

 1590*1460*1875

1650*1640*2050

1810X1950X2165

整机重量(约)



     1500

    1800

      2600

      3000

Hospital isolated washing machine features


Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms


Dust-free clothes washing machines, washing machines, dryers are suitable for sanitary and epidemic prevention, pharmaceutical factories, hospitals, wireless electronics, aerospace, infectious wards, aseptic workshops and other industries.


Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms


1. Computer controlled, fully automatic / manual optional, large washing capacity, high cleaning rate and beautiful appearance.

2. Bilateral control to avoid re-contamination of laundry.

3. Advanced structure, flexible suspension, low noise and vibration.

4, frequency conversion speed regulation, easy operation, energy saving.

5. It has a wide range of applications, increased hygienic isolation, and meets strict environmental requirements.


 GLQX series sanitary isolated washing machine is the latest sanitary washing machine series product developed and put on the market by our company. The machine and the partition wall can separate the laundry room into two operating areas, "clean area" and "non-clean area". The laundry is loaded into the machine by the machine door located in the "clean area". After washing is completed, it is taken out of the machine door in the "clean area". This can prevent bacteria and dust particles from flowing from the "clean area" to the "clean area". In order to recontaminate clean laundry, hospitals, public health centers, microelectronics, semiconductor and optoelectronic companies, biological, pharmaceutical, cosmetics, food factories, and nuclear power plants have strict sterility, dust-free, and antistatic properties for laundry room environments. , Occasions requiring radiation protection.


      XTQ-GL series sanitary isolated washing machine has full-automatic functions of washing and dewatering, reasonable structure and easy operation. It is the best choice to provide sanitary safety services and improve the taste and competitiveness of washing enterprises.


 Second, the main features


      1. This equipment adopts a tube-type laundry tub and utilizes the uniform distribution of water flow to achieve the purpose of clothing balance. Combined with special shock absorption, the vibration of the whole machine disappears on the shock absorption device (referred to as internal shock absorption) to protect The device and the surrounding environment are convenient for users.


      2. Using washing machine touch screen computer controller and imported inverter, it has high automation, safety, stability and reliability, and realizes the entire process of initial washing, washing, disinfection, cleaning, bleaching and dehydration.


      3. The device is equipped with two control modes, automatic and manual. For manual control, the washing cycle, the number of cleaning cycles, the dehydration time, and the water level control can be selected arbitrarily through the operation button.


      4. The outer cylinder of the machine adopts double-opening door, which separates the user's loading and unloading into two sections, ensuring the requirements of sanitary isolation.


      5. Each control valve of this equipment adopts pneumatic control, which moves quickly and reliably, has no pollution to the surrounding environment, and is easy to maintain.


      6. This equipment has a large diameter water and steam adding device, which is convenient for users to choose.


      7. The equipment's washing tub, outer tube and outer cover are all made of high-quality stainless steel, with smooth surface, high strength, corrosion resistance, beautiful and durable.


      8. The electric control box is connected with the whole machine, which is convenient for installation, small in size, reduced in area, and convenient for transportation and installation.


      9. This equipment has a frame structure at the bottom of the box, which has no water leakage and no pollution to the environment, and can keep the site clean.


      10. This equipment adopts imported brand-name AC motor frequency converter for speed regulation, so it only uses first-level triangular belt drive, which simplifies structure and reduces power loss. Its transmission is stable and reliable, low noise, excessive uniformity when changing speed, and low mechanical failure , Convenient maintenance and more perfect functions.

Hospital isolated washing machine features


Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms


Dust-free clothes washing machines, washing machines, dryers are suitable for sanitary and epidemic prevention, pharmaceutical factories, hospitals, wireless electronics, aerospace, infectious wards, aseptic workshops and other industries.


Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms


1. Computer controlled, fully automatic / manual optional, large washing capacity, high cleaning rate and beautiful appearance.

2. Bilateral control to avoid re-contamination of laundry.

3. Advanced structure, flexible suspension, low noise and vibration.

4, frequency conversion speed regulation, easy operation, energy saving.

5. It has a wide range of applications, increased hygienic isolation, and meets strict environmental requirements.


 GLQX series sanitary isolated washing machine is the latest sanitary washing machine series product developed and put on the market by our company. The machine and the partition wall can separate the laundry room into two operating areas, "clean area" and "non-clean area". The laundry is loaded into the machine by the machine door located in the "clean area". After washing is completed, it is taken out of the machine door in the "clean area". This can prevent bacteria and dust particles from flowing from the "clean area" to the "clean area". In order to recontaminate clean laundry, hospitals, public health centers, microelectronics, semiconductor and optoelectronic companies, biological, pharmaceutical, cosmetics, food factories, and nuclear power plants have strict sterility, dust-free, and antistatic properties for laundry room environments. , Occasions requiring radiation protection.


      XTQ-GL series sanitary isolated washing machine has full-automatic functions of washing and dewatering, reasonable structure and easy operation. It is the best choice to provide sanitary safety services and improve the taste and competitiveness of washing enterprises.


 Second, the main features


      1. This equipment adopts a tube-type laundry tub and utilizes the uniform distribution of water flow to achieve the purpose of clothing balance. Combined with special shock absorption, the vibration of the whole machine disappears on the shock absorption device (referred to as internal shock absorption) to protect The device and the surrounding environment are convenient for users.


      2. Using washing machine touch screen computer controller and imported inverter, it has high automation, safety, stability and reliability, and realizes the entire process of initial washing, washing, disinfection, cleaning, bleaching and dehydration.


      3. The device is equipped with two control modes, automatic and manual. For manual control, the washing cycle, the number of cleaning cycles, the dehydration time, and the water level control can be selected arbitrarily through the operation button.


      4. The outer cylinder of the machine adopts double-opening door, which separates the user's loading and unloading into two sections, ensuring the requirements of sanitary isolation.


      5. Each control valve of this equipment adopts pneumatic control, which moves quickly and reliably, has no pollution to the surrounding environment, and is easy to maintain.


      6. This equipment has a large diameter water and steam adding device, which is convenient for users to choose.


      7. The equipment's washing tub, outer tube and outer cover are all made of high-quality stainless steel, with smooth surface, high strength, corrosion resistance, beautiful and durable.


      8. The electric control box is connected with the whole machine, which is convenient for installation, small in size, reduced in area, and convenient for transportation and installation.


      9. This equipment has a frame structure at the bottom of the box, which has no water leakage and no pollution to the environment, and can keep the site clean.


      10. This equipment adopts imported brand-name AC motor frequency converter for speed regulation, so it only uses first-level triangular belt drive, which simplifies structure and reduces power loss. Its transmission is stable and reliable, low noise, excessive uniformity when changing speed, and low mechanical failure , Convenient maintenance and more perfect functions.

四、机器安装

1、安装准备

1.1设备检查

当收到机器后,请立即对机器及标志、随机文件、备品备件进行检查。如发现机器损坏,并确认是由于运输过程中造成,请与本公司或经销商联系。

随机文件有:产品合格证、产品使用说明书、洗衣机电脑控制器厂家使用说明书、变频器使用说明书。

1.2基础要求

在安装机器时混凝土基础必须能够承受机器两倍重量,并做好水平.

1.3基础排布要求

机器的右下部(从装料门看,下同)有一排水阀门,将废水排入放水沟槽;右侧上部有进冷(热)水,进蒸汽管口,分别与冷(热)水与蒸汽源连接。

假如有两台以上的相同型号机器并列排布时,必须有一个总排水沟,将每台机器的排水沟槽联系起来。机器之间的相对间隔必须在600毫米以上,以利操作与保养维修。

2、吊装运输

机器上设有起吊孔,可以用起重机起吊移动机器的安装位置。如果没有起重机,可利用圆管垫底滚动的方法使机器就位。

3、机器安装

机器就位后必须将底部四个脚找平、垫实,最好在四个脚板旁用膨胀螺丝和压板将地脚压紧。

4、电力供应

本机需要一个额定频率为50HZ、额定电压为380V/220V的电源供入,最大输入功率及三相四线制电缆的横截面请见“主要技术参数表”,并加装一个额定电流为50A的空气开关(电加热型需另行计算)。在机器上接好接地保护线,应与可靠的接地保护网连接。

5、冷(热)水供应

本机设备有冷水入口一个,通经与接头尺寸见“主要技术参数表”(用户如需要热水,可在订购时提出,加设热水入口)。通常在冷(热)水入口管前,要加装相同通经的手动阀。

6、蒸汽供应

本机设有一个蒸汽入口,其通经与接头规格见“主要技术参数表”,在入口之前,要加装一个相同通经的手动阀。

7、压缩空气供应

本机需要一个压力不低于0.5MPa的压缩空气源,机器上的接管外经为 8mm,建议用户使用 Φ8的输氧管。

8、固定装置

该设备中使用前需拆去机器运输专用的固定板后,方可使用。

Fourth, the machine installation


1. Preparation for installation


1.1 Equipment inspection


When you receive the machine, please immediately inspect the machine and signs, random documents, and spare parts. If it is found that the machine is damaged, and it is confirmed that it is caused during transportation, please contact our company or the dealer.


Random documents are: product certificate, product instruction manual, washing machine computer controller manufacturer's instruction manual, inverter instruction manual.


1.2 Basic requirements


When installing the machine, the concrete foundation must be able to bear twice the weight of the machine and be level.


1.3 Basic layout requirements


The lower right part of the machine (from the charging door, the same below) has a drain valve to discharge the waste water into the drain groove; the upper right part has cold (hot) water inlet and steam pipe inlets, which are connected with cold (hot) water and Steam source connection.


If two or more machines of the same model are arranged side by side, there must be a total drainage channel to connect the drainage channel of each machine. The relative distance between the machines must be more than 600 mm to facilitate operation and maintenance.


2.Lifting and transportation


There are lifting holes on the machine, which can be moved by crane to move the installation position. If you don't have a crane, you can roll the bottom of the tube to get the machine in place.


3. Machine installation


After the machine is in place, the bottom four feet must be leveled and padded. It is best to use expansion screws and pressure plates to compress the ground feet next to the four foot plates.


4. Power supply


This machine requires a power supply with a rated frequency of 50HZ and a rated voltage of 380V / 220V. For the maximum input power and the cross-section of the three-phase four-wire cable, please refer to the "main technical parameter table", and add a rated current of 50A. Air switch (electric heating type needs to be calculated separately). Connect the ground protection wire to the machine and connect it to a reliable ground protection network.


5. Cold (hot) water supply


This machine has a cold water inlet. For the dimensions of the joints and joints, please refer to the "Main technical parameter table" (If users need hot water, they can ask for it when ordering, and add a hot water inlet). Normally, a manual valve with the same passage must be installed before the cold (hot) water inlet pipe.


6.Steam supply


This machine is equipped with a steam inlet. For the specifications of the passage and joints, please refer to the "Main Technical Parameter Table". Before the inlet, a manual valve with the same passage must be installed.


7.Compressed air supply


This machine requires a compressed air source with a pressure of not less than 0.5 MPa. The external diameter of the pipe on the machine is 8mm. It is recommended that users use a Φ8 oxygen pipe.


8.Fixing device


Before using this equipment, the fixing plate for machine transportation must be removed before use.
